Unit cell versus RVE modelling of UD composites

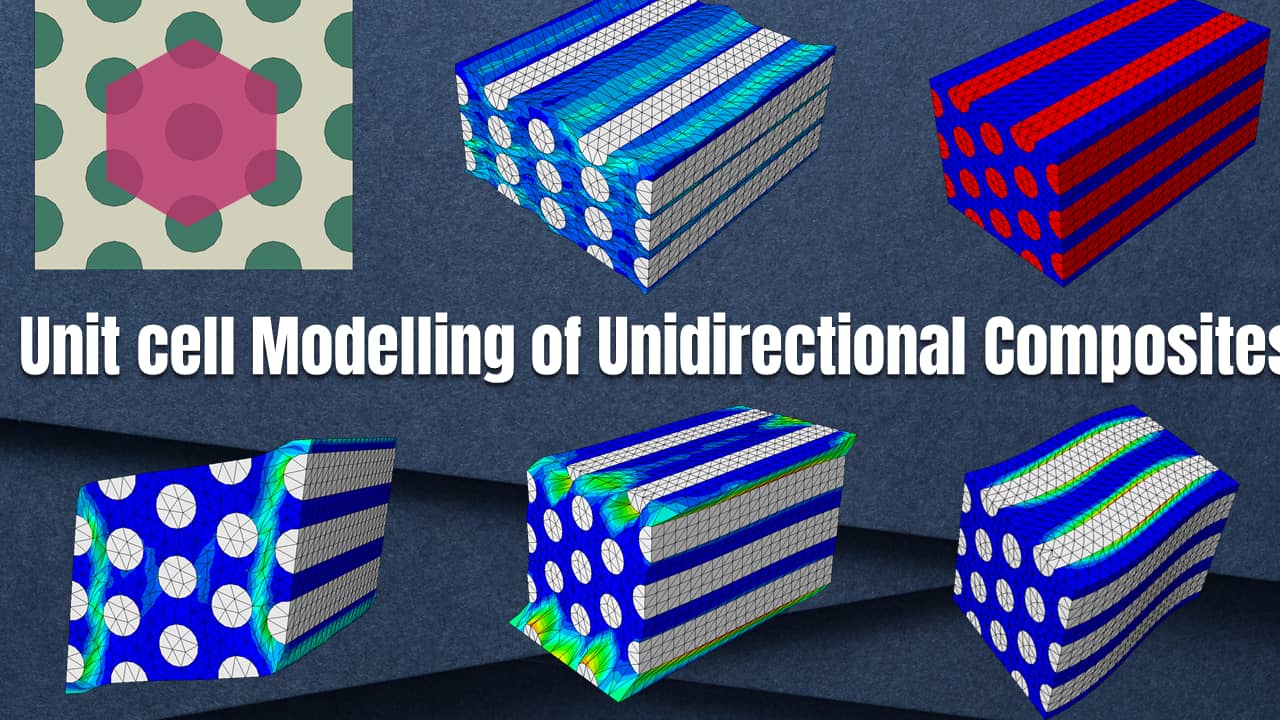

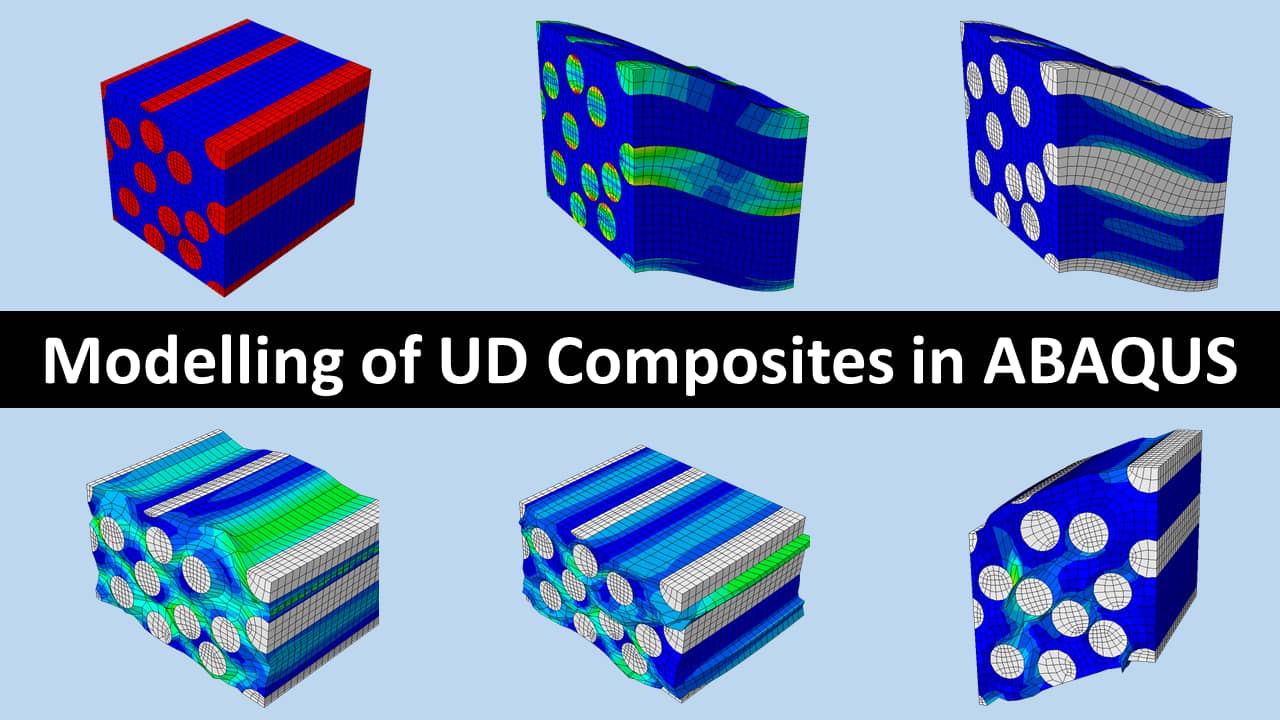

This week, I published a video which you can see below, using the approach of unit cell modelling of UD composites. I usually work with Representative Volume Element models but decided to do something different for the audience who want a unit cell model. The question you might ask is, what is the difference between unit cell and representative volume element?
Firstly, a Representative Volume Element (RVE) is a virtual domain that captures the entirety of the macroscale based on a sizeable microscale domain. The key here is that the RVE should be big enough to represent or replace the macroscale domain. To do so, the look, feel and properties generated from the RVE must converge with those experimentally determined from the macroscale domain. RVE modelling is best used where heterogenous distribution of inclusions is established.
|
On the other hand, Unit Cell Modelling is used where a clear repeating pattern can be identified in the microstructure. For such systems, it does not make sense to use a bigger sized RVE since the underlying architecture is the same. It is usually based on the smallest repeating unit hence the idea of a unit cell. It can be relatively easy to model but the user needs to be sure a convergence between effective properties (numerical) and experimental properties exists.
|
How to decide to go with either Unit cell or RVE modelling approach: To decide whether to go the Unit Cell or RVE modelling approach, you have to consider the distribution of the inclusions (or microstructural features) within the proposed virtual domain. If there is a clear repeating pattern and you can identify a sizeable repeating unit, then it makes sense to follow the unit cell modelling approach. This will be true if the microstructure is homogeneous i.e. in terms of size of geometric features rather than material consitituents.
On the other hand, if your microstructure shows randomness of microstructural features (geometry-wise), and you struggle to find a repeating unit, then an RVE modelling approach is advised. The task here is to determine how big the virtual domain will be to be representative-enough for the material you are working with. Therefore, you will have to do some iterative numerical studies to compare numerical predictions with experimental properties until a convergence exists between the two - at which point, you now have your RVE.
If you are interested in further insights into these, then do let me know and I can make a video about it for the YouTube channel.
